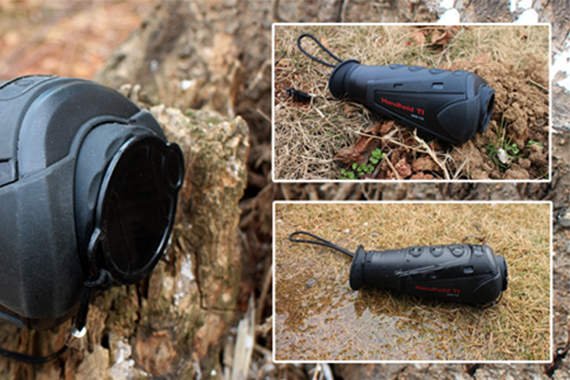

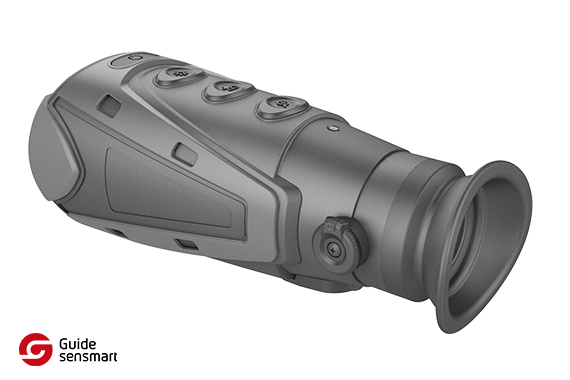

IR510P Night vision scope / Thermal Imager


IR510 series are handheld thermal imagers. The Pro version brings you more fun and benefit with the image record function. With these new features, you can recall the interesting memories on site, you can share what you saved in the thermal imager with your fellows, the policeman or law enforcement officers can even take the imagers saved as evidence. A reliable vision and detection tool making it ideal for wildlife observation, hunting, search & rescue or security and surveillance applications.


Detector Type: Infrared 400×300 25μm

Spectral Range: 7.5μm~14μm


Focus: 19mm, F1.0

Focusing: Fixed focus, athermalizing

Screen: Colorful LCOS

Viewfinder: Monocular, diopter adjustable

Detection: 400 meter

Recognition: 200 meter


Frame: 25Hz/50Hz

Digital Zoom: 2×,4×

Tracing: Hot spot tracing

Color Palette: Black hot, white hot, red hot 1, red hot 2, red hot 3

Image Format: JPG

Configuration: Laser point


Battery: Internal Li-ion battery

Working Time: ≥5h

Adapter: Standard USB power adapter, max 10W


USB: Charging, data transfer

Video Output: Analog video output, PAL/NTSC alternative

Environment Characteristics

Working Temperature: -10℃~60℃

Storage Temperature: -30℃~60℃

Humidity: 10%~95%

Shock: 25G,IEC68-2-29,GB

Physical Parameter

Weight: 350g

Size: 160mm×67mm×62mm


Flat Rate:
Item Condition
In Stock

Additional information for IR510P Night vision scope / Thermal Imager

Cameras & Electronics Brand

GUIDE Infrared

Cameras & Electronics Type

Handheld Thermal Imager
