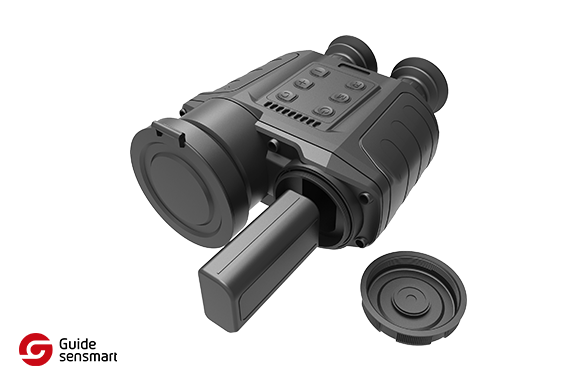

IR516B : 800*600 Handheld Thermal Binocular / Night Vision Scope


IR516B is your ideal choice for day-and-night observation and surveillance. With all these features, it’s an essential tool in wildlife observation, hunting, public safety, police and security operations.

  • Binocular display, can be contacted with external display device
  • It's easy to carry and use with its ergonomic design
  • Power control, contrast and brightness adjustment, image polarity conversion and 2x digital zoom
  • It can open and close eyepieces by sensing face's temperature
  • With the integrating function of taking photo, video and reviewing, which can be output by USB
  • Identity and track the hottest spot with auto-focusing mode


Detector Resolution: 800×600,17μm

Spectral Range: 7.5μm~14μm


Focus: 70mm

FOV: 11.1°×8.31°(±5%)

Working Range/Detection Range

1.8m×0.5m Human:  >2000m

2.3m×2.3m Vehicle:  >3500m


Image Enhancement: Auto image filtering and sharp

Brightness/Contrast: Auto/Manual

Polarity: White-hot/black-hot,palette

Digital Zoom: 2×

Video Storage: Built-in 16G SD card

View Finder: OLED 1280×1024, visual acuity


Electrical Interface: power, video PAL (NTSC can customizable), communication RS232

Mechanical Interface: 1/4 inch standard interface


Power Input: 12V power adapter or built-in Li-ion battery

Continuous Working Time By Battery: ≥4h(without changing battery)

Environment Parameters

Working Temperature: -40℃~60℃(Except for display equipment)

Encapsulation: IP67

Electromagnetic Compatibility: GJB151A-97

Physical Characteristics

Weight ≤1.5kg(including battery)

Size: ≤210mm×170mm×100mm
